Single-Sensor Torque Wrench Calibration Testers

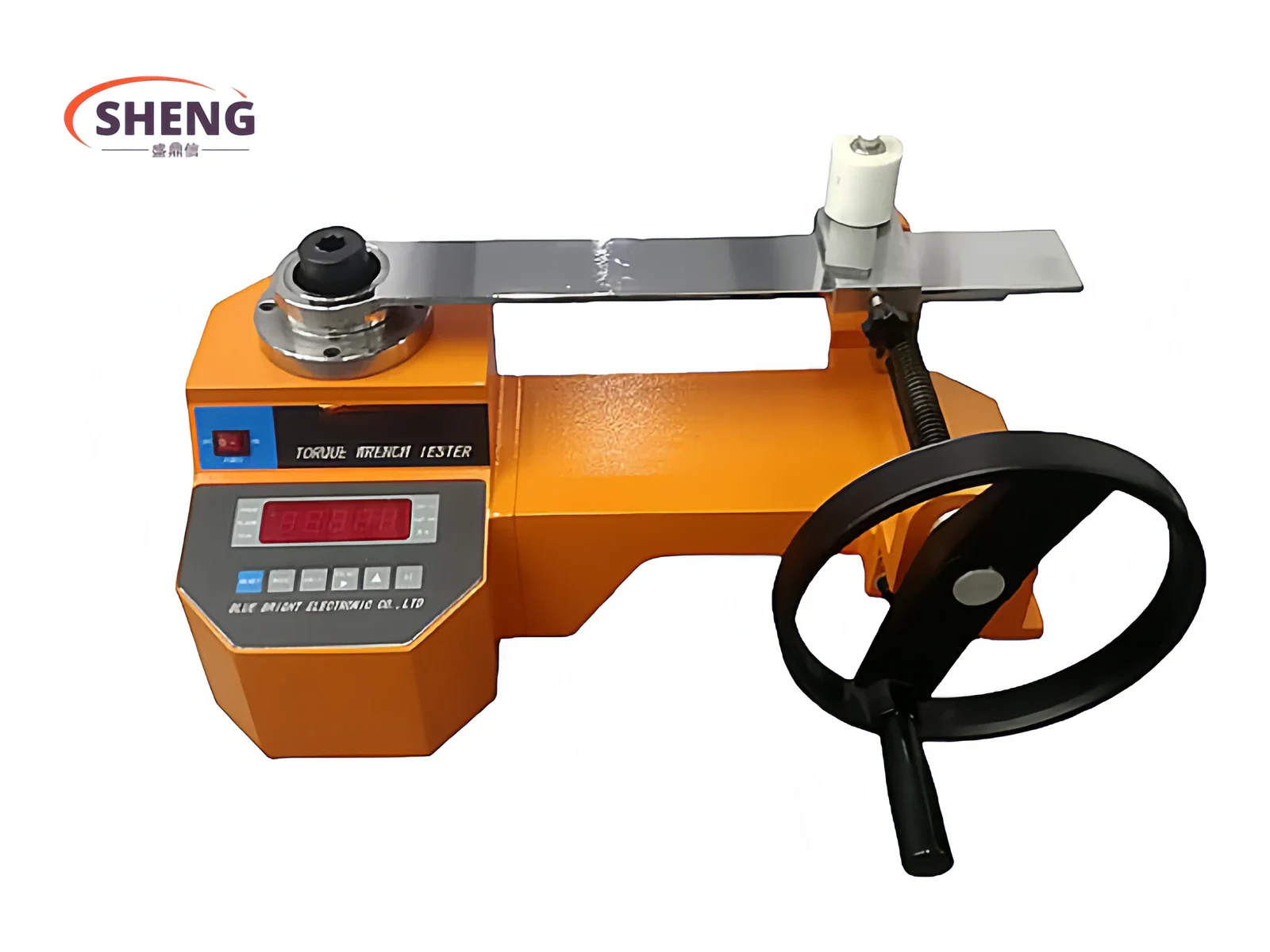

SDX-1000CT-01 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 0.2–2 N·m
- External dimensions
- 280 × 90 × 170 mm
- Drive size
- 6.3 mm
Product Series
Single-Sensor Torque Wrench Calibration Testers
Torque wrench calibration testers with a single-sensor configuration for testing, calibrating and verifying manual torque wrenches.
14 Models
Choosing a Model
Compare Models
Start with the required torque range, then compare maximum effective arm, drive size, external dimensions and weight across the fourteen models.
- Work object
- Manual torque wrenches
- Available Models
- 14 models
- Compare by
- Torque range, Maximum effective arm, Drive size, External dimensions, Weight
Series Specifications
Specifications Shared Across the Series
These values are listed for the Series as a whole. Model-specific dimensions and capacities are compared separately below.
- Precision
- ±1%
- Display mode
- 5-digit LED display
- Power supply
- AC 220–240 V / 50 Hz
Series Models
Choose by Model
Review the model images and key specifications before opening the full product page.
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-02 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 0.5–5 N·m
- External dimensions
- 280 × 90 × 170 mm
- Drive size
- 6.3 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-03 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 1–10 N·m
- External dimensions
- 800 × 440 × 340 mm
- Drive size
- 6.3 / 10 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-04 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 3–30 N·m
- External dimensions
- 800 × 440 × 340 mm
- Drive size
- 6.3 / 10 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-05 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 5–50 N·m
- External dimensions
- 800 × 440 × 340 mm
- Drive size
- 6.3 / 10 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-06 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 10–100 N·m
- External dimensions
- 950 × 440 × 340 mm
- Drive size
- 6.3 / 10 / 12.5 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-07 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 20–200 N·m
- External dimensions
- 950 × 440 × 340 mm
- Drive size
- 6.3 / 10 / 12.5 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-08 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 30–300 N·m
- External dimensions
- 950 × 440 × 340 mm
- Drive size
- 6.3 / 10 / 12.5 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-09 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 50–500 N·m
- External dimensions
- 950 × 440 × 340 mm
- Drive size
- 10 / 12.5 / 20 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-10 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 100–1,000 N·m
- External dimensions
- 1,400 × 600 × 350 mm
- Drive size
- 12.5 / 20 / 25 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-11 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 200–2,000 N·m
- External dimensions
- 1,600 × 800 × 550 mm
- Drive size
- 20 / 25 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-12 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 300–3,000 N·m
- External dimensions
- 2,000 × 1,000 × 550 mm
- Drive size
- 20 / 25 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-13 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 500–5,000 N·m
- External dimensions
- 2,000 × 1,000 × 550 mm
- Drive size
- 20 / 25 / 38 mm
Single-Sensor Torque Wrench Calibration Testers
SDX-1000CT-14 Single-Sensor Torque Wrench Calibration Tester
Torque Testing & Calibration Equipment
- Torque range
- 1,000–10,000 N·m
- External dimensions
- 2,000 × 1,000 × 550 mm
- Drive size
- 25 / 38 / 51 mm
Model Comparison
Compare Model Specifications
Compare the key specifications below, then open a model for full product details.
Scroll the table horizontally to review every column.
| Model | Torque range | Maximum effective arm | Drive size | External dimensions | Weight | Product page |
|---|---|---|---|---|---|---|
| SDX-1000CT-01 | 0.2–2 N·m | 6.3 mm | 280 × 90 × 170 mm | 25 kg | View Model | |
| SDX-1000CT-02 | 0.5–5 N·m | 6.3 mm | 280 × 90 × 170 mm | 25 kg | View Model | |
| SDX-1000CT-03 | 1–10 N·m | 600 mm | 6.3 / 10 mm | 800 × 440 × 340 mm | 25 kg | View Model |
| SDX-1000CT-04 | 3–30 N·m | 600 mm | 6.3 / 10 mm | 800 × 440 × 340 mm | 25 kg | View Model |
| SDX-1000CT-05 | 5–50 N·m | 600 mm | 6.3 / 10 mm | 800 × 440 × 340 mm | 25 kg | View Model |
| SDX-1000CT-06 | 10–100 N·m | 750 mm | 6.3 / 10 / 12.5 mm | 950 × 440 × 340 mm | 25 kg | View Model |
| SDX-1000CT-07 | 20–200 N·m | 750 mm | 6.3 / 10 / 12.5 mm | 950 × 440 × 340 mm | 25 kg | View Model |
| SDX-1000CT-08 | 30–300 N·m | 750 mm | 6.3 / 10 / 12.5 mm | 950 × 440 × 340 mm | 25 kg | View Model |
| SDX-1000CT-09 | 50–500 N·m | 750 mm | 10 / 12.5 / 20 mm | 950 × 440 × 340 mm | 25 kg | View Model |
| SDX-1000CT-10 | 100–1,000 N·m | 1,200 mm | 12.5 / 20 / 25 mm | 1,400 × 600 × 350 mm | 60 kg | View Model |
| SDX-1000CT-11 | 200–2,000 N·m | 1,300 mm | 20 / 25 mm | 1,600 × 800 × 550 mm | 65 kg | View Model |
| SDX-1000CT-12 | 300–3,000 N·m | 1,800 mm | 20 / 25 mm | 2,000 × 1,000 × 550 mm | 90 kg | View Model |
| SDX-1000CT-13 | 500–5,000 N·m | 1,800 mm | 20 / 25 / 38 mm | 2,000 × 1,000 × 550 mm | 90 kg | View Model |
| SDX-1000CT-14 | 1,000–10,000 N·m | 1,800 mm | 25 / 38 / 51 mm | 2,000 × 1,000 × 550 mm | 90 kg | View Model |
Common Questions
Questions Before You Choose
Use these questions to focus your model comparison before you inquire.
How do I choose a single-sensor tester model?
Start with a torque range that covers the required test point, then confirm the drive size, maximum effective arm, external dimensions and weight in the comparison table.
Which specifications apply to the complete Series?
The source lists ±1% precision, a 5-digit LED display and AC 220–240 V / 50 Hz power supply as shared Series specifications rather than model-specific table values.
When should I compare the dual-sensor Series?
Compare the dual-sensor models when the two listed torque ranges and dual-sensor structure better match the required test setup.
